Manuka: Weta Digital's Spectral Renderer

Johannes Hanika, Weta Digital

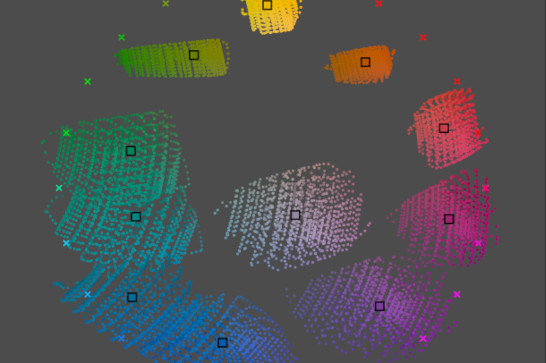

Metameric spectra for the XYZ CMF observer

photographed by different cameras

 spectrum XYZ c00 c01 c02 c03 c04 c05 c06 c07 c08 c09 c10 c11

Metameric spectra for the XYZ CMF observer

photographed by different cameras

 spectrum XYZ c00 c01 c02 c03 c04 c05 c06 c07 c08 c09 c10 c11

Metameric spectra for the XYZ CMF observer

photographed by different cameras

 spectrum XYZ c00 c01 c02 c03 c04 c05 c06 c07 c08 c09 c10 c11

Indirect lighting in a renderer

• for a simple single-bounce path $I_r = \int_\mathcal{P} h_p(\mathbf{X}) \int_\Lambda \bar{r}(\lambda) \cdot L_e(\lambda) \cdot G \cdot f_r(\lambda) \cdot G \cdot W(\lambda) \cdot d\lambda d\mathbf{X}$
• we can swap the integrals
• first convert to RGB and then accumulate in an RGB frame buffer
• but RGB rendering: $\underbrace{\int_\Lambda \bar{r}(\lambda) \cdot L_e(\lambda) \cdot f_r(\lambda) d\lambda}_{\scriptsize{\mathsf{\mbox{reflected light in RGB}}}} \neq \underbrace{\int_\Lambda \bar{r}(\lambda) \cdot L_e(\lambda) d\lambda}_{\scriptsize{\mathsf{\mbox{light in RGB}}}} \cdot \underbrace{\int_\Lambda \bar{r}(\lambda) \cdot f_r(\lambda) d\lambda}_{\scriptsize{\mathsf{\mbox{Bsdf in RGB}}}}$
• Ouch!

Indirect lighting, reflectance in rec709 (1.00, 0.95, 0.90)

 #bounces 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 XYZ ACES Adobe RGB rec709 spectral
illuminant E white
(whitepoint does not match rec709)

Indirect lighting, reflectance in rec709 (1.00, 0.95, 0.90)

 #bounces 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 XYZ ACEScg Adobe RGB rec709 spectral
illuminant E white
(whitepoint does not match rec709)

Indirect lighting, reflectance in rec709 (0.97, 0.01, 0.00)

 #bounces 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 XYZ ACEScg Adobe RGB rec709 spectral
most saturated red
(gamut mapped to valid reflectance)

Indirect lighting, reflectance in rec709 (0.96, 0.00, 0.72)

 #bounces 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 XYZ ACEScg Adobe RGB rec709 spectral
magenta
(not saturated)

Thank you for listening!

thanks to the wikihuman project for the digital emily asset used in the skin renders

Indirect lighting, reflectance in rec709 (1.00, 0.95, 0.90)

 #bounces 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 XYZ ACES ACEScg Adobe RGB rec709 spectral
illuminant E white
(whitepoint does not match rec709)

Indirect lighting, reflectance in rec709 (0.97, 0.01, 0.00)

 #bounces 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 XYZ ACES ACEScg Adobe RGB rec709 spectral
most saturated red
(gamut mapped to valid reflectance)

Indirect lighting, reflectance in rec709 (0.00, 0.86, 0.00)

 #bounces 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 XYZ ACES ACEScg Adobe RGB rec709 spectral
saturated green
(gamut mapped to valid reflectance)

Indirect lighting, reflectance in rec709 (0.00, 0.00, 0.68)

 #bounces 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 XYZ ACES ACEScg Adobe RGB rec709 spectral
most saturated blue
(gamut mapped to valid reflectance)

Indirect lighting, reflectance in rec709 (0.11, 0.09, 0.85)

 #bounces 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 XYZ ACES ACEScg Adobe RGB rec709 spectral
softer blue to reduce peaks

Indirect lighting, reflectance in rec709 (0.00, 0.81, 0.78)

 #bounces 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 XYZ ACES ACEScg Adobe RGB rec709 spectral
cyan

Indirect lighting, reflectance in rec709 (1.00, 0.00, 0.74)

 #bounces 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 XYZ ACES ACEScg Adobe RGB rec709 spectral
magenta

Indirect lighting, reflectance in rec709 (0.96, 0.00, 0.72)

 #bounces 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 XYZ ACES ACEScg Adobe RGB rec709 spectral
magenta
(not saturated)

Indirect lighting, reflectance in rec709 (1.00, 0.89, 0.00)

 #bounces 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 XYZ ACES ACEScg Adobe RGB rec709 spectral
yellow

Indirect lighting, reflectance in rec709 (0.93, 0.06, 0.00)

 #bounces 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 XYZ ACES ACEScg Adobe RGB rec709 spectral
measured spectrum
